Andersen 200 Series 3-point Lock, Universal, 62-1/2 Inch Faceplate Length

Andersen 200 Series Active 3-Point Lock Mechanism

Looking hooks at top and bottom
This lock fits ALL Andersen 200 Series Inswing Door panels
Fits Panel Heights: 6-8 (76-3/4 inches), 6-11 (79-5/8 inches), 7-6 (86-3/4 inches), 8-0 (92-3/4 inches)

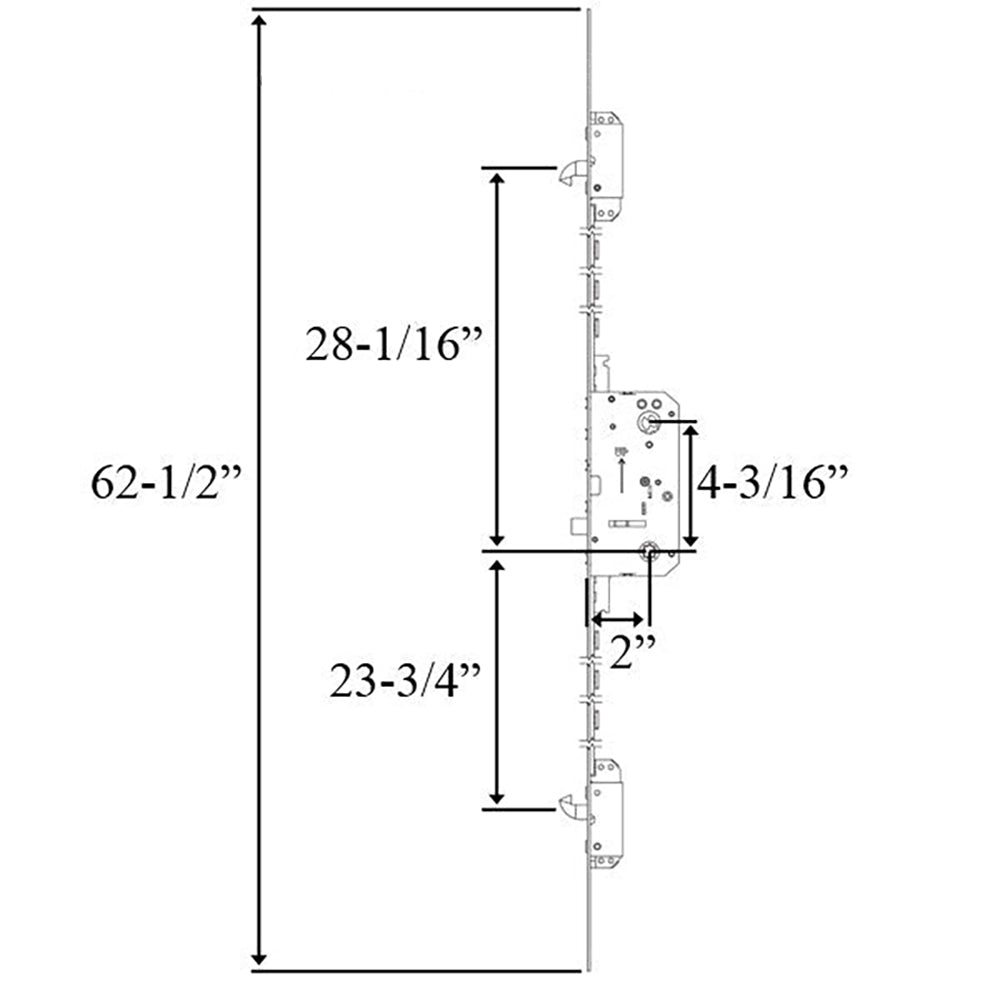

Overall Lock Length 62-1/2" Radius Ends (used on all 4 panel heights -- lock does not extend completely to top or bottom of door panel)
Faceplate Plate Width: 7/8 inch
Backset: 2 inch (50mm)
Center of handle to center of lock: 4-3/16 inches
Bottom Hook: 23-3/4 inches (center of handle to center of hook)
Top Hook: 28-1/16 inches (center of handle to center of hook)

Material: Stainless Steel


To Reverse Latch Handing:
1. Insert small screw driver into round hole between latch and deadbolt.
2. Push down on screw driver to release latch
3. Rotate latch and push back into lock
