Andersen Contemporary Storm Door Hardware Kwikset Key

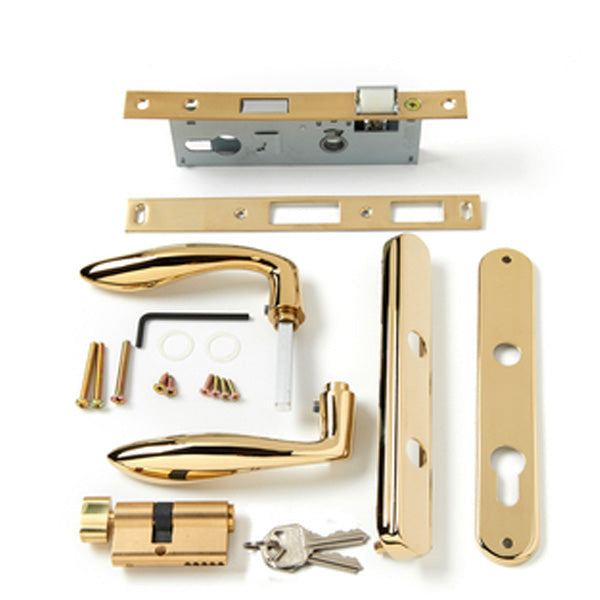

Andersen Emco Contemporary Storm Door Hardware Set – 1 Inch Backset

Upgrade or replace your storm door hardware with this contemporary style hardware set, designed for Andersen 3000 & 4000 Series Storm Doors equipped with a mortise or multipoint lock. This kit includes a special 1 inch backset mortise lock and a Euro-profile off-center Kwikset 5-pin cylinder.

Key Features:

• Designed for Andersen 3000 and 4000 Series storm doors
• 1 inch backset mortise lock (standard backset is 7/8 inch)
• Contemporary handle style with rekeyable Kwikset KW1 5-pin cylinder
• Compatible with mortise and multipoint locking systems
• Discontinued product – limited availability

Cylinder & Handle Specifications:

• Cylinder Type: Euro-style profile, off-center cam
• Keyway: Kwikset 5-pin (KW1), rekeyable
• Keys Included: 2
• Overall Cylinder Length: 2-1/8 inches (55 mm)
• Inside Measurement: 1-1/4 inches (32 mm) to screw hole
• Outside Measurement: 7/8 inch (22 mm) to screw hole
• Spindle: 5/16 inch square x 3-1/4 inch long

Mortise Lock Measurements:

• Backset: 1 inch
• Trim Plate Screw Hole Spacing: 6-15/16 inches
• Door Thickness Compatibility: 1-1/2 inch
• Handle Hole Diameter: 9/16 inch (note: standard is 5/8 inch)

Available Finishes:

• Brass
• Nickel
• Bronze

Handing Adjustment:

To reverse the handing of the mortise lock, remove the faceplate, rotate the spring latch 180 degrees, and reattach the faceplate.

Note: This hardware set may have a different style than your existing hardware. Sold as a complete package.
