Emco Fullview Storm Door Mortise Lock Set. Used on door with Piano Hinge and Large brass thumb turns to hold glass.
Available Colors: Polished Brass.
This is a Mortise Lock Set used on old Emco 1-1/2" thick Fullview Storm Door.
It features a rectangular shaped cylinder and has a small diameter round key cylinder hole on the outside backplate.

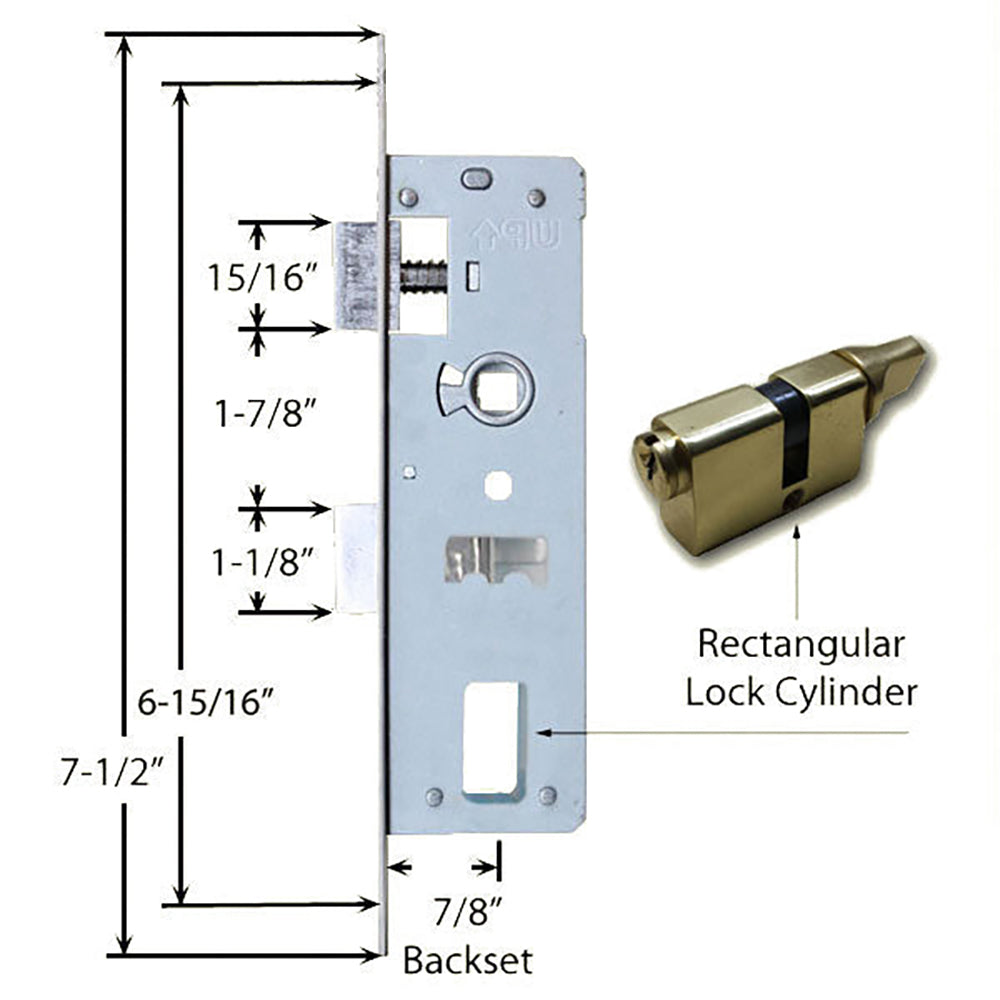

Mortise Lock Measurements:
Backset: 7/8"
The Backset is measured form the edge of the mortise lock to the center of the handle hole.
Faceplate Length: 7-1/2"
Faceplate Width: 3/4" (20mm)
Mounting Hole Spacing: 6-15/16"
Strike Plate: 1-3/4" x 6-1/4" with 4 screws.
Handle Style: Curved
Mounting Holes: 6-11/16"
Backplate Length: 7-7/16"
Backplate Width: 1"
Handle Hole: 9/16"
Key Cylinder Hole: 11/16"
NOTE:
Limited supplies
This lock kit will work only on doors with the above measurements
Priced as a Kit, Sold as a Kit
