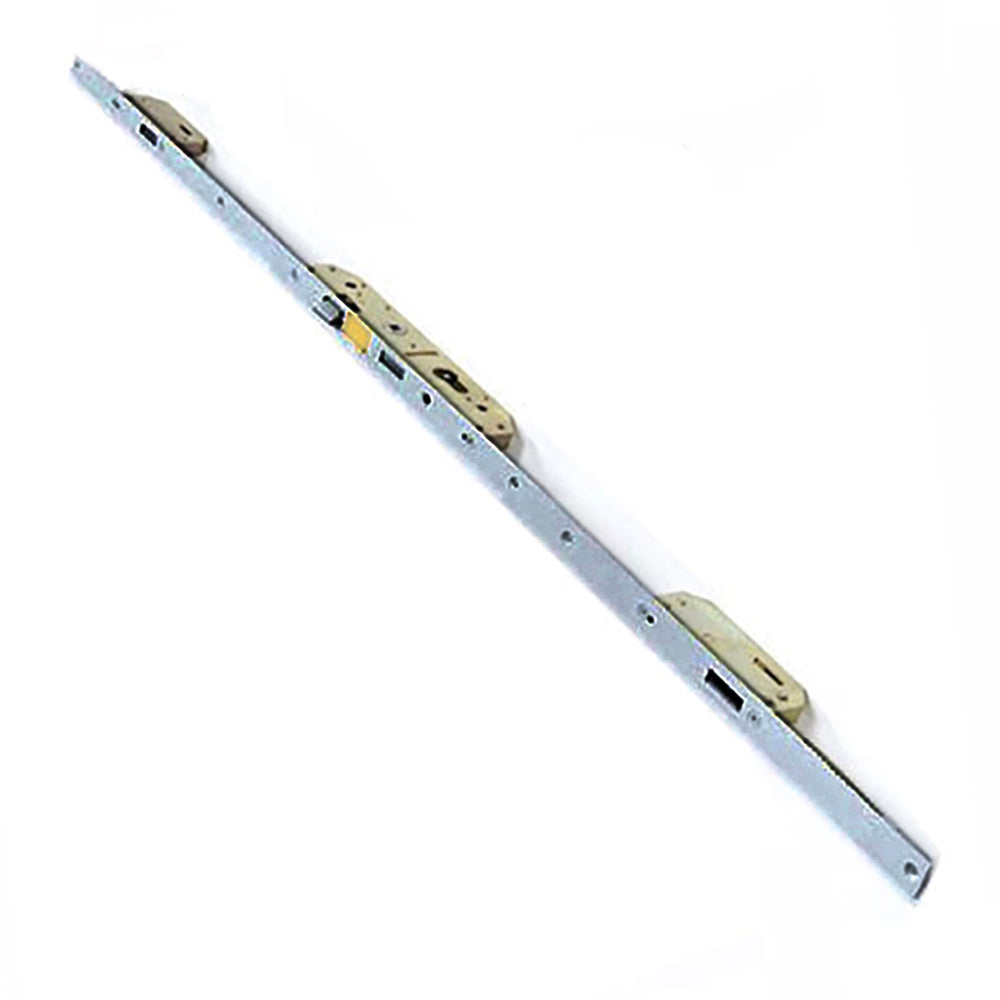

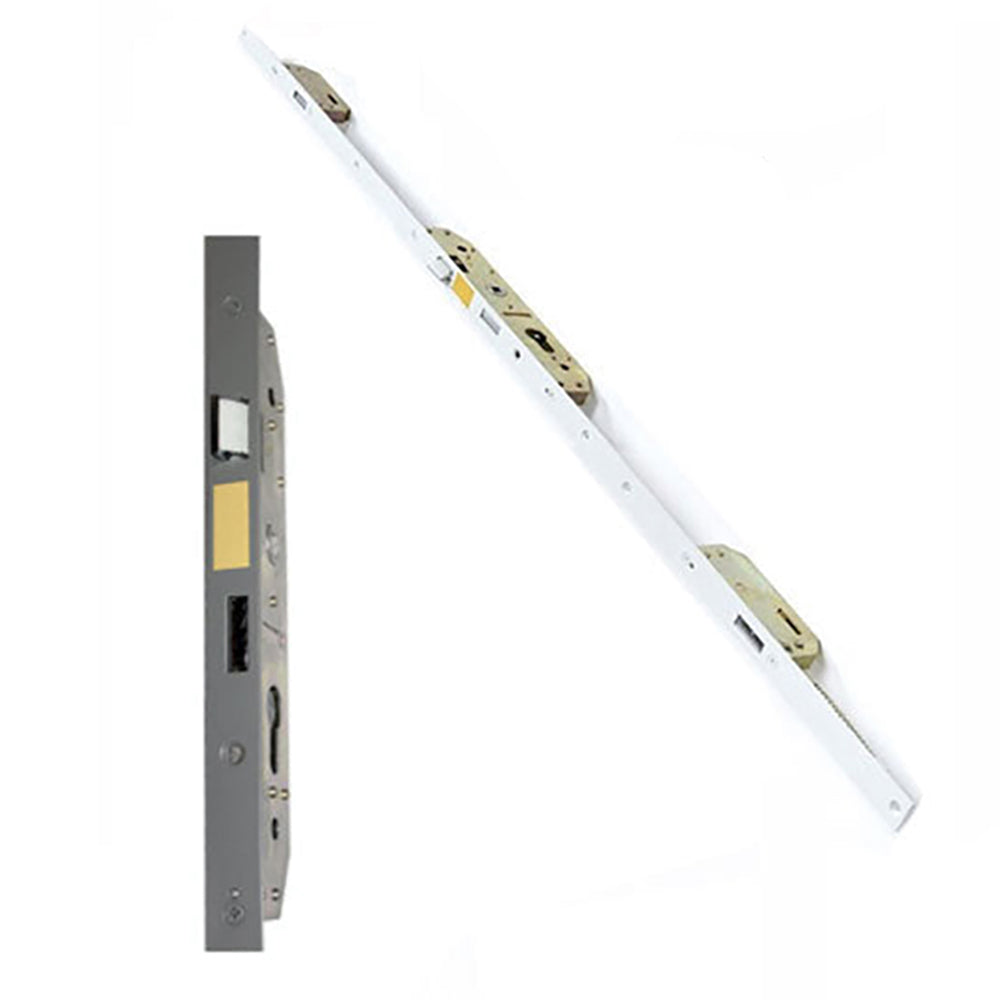

Andersen Emco Storm Door Multipoint Lock with 2 Hooks and Deadbolt Left hand

Andersen Emco Storm Door Multipoint Lock (MPL), 2 Hooks and Deadbolt, LH- Gray

Andersen / Emco 4000 series storm door with multipoint lock, 1 or 3 locking points

Can be used as single point lock, deadbolt at handle only or a 3-point lock using upper and lower deadbolts

Backset: 1-1/16 inch (27mm) 1.063

Deadbolt Throw: 3/8 inch (10mm)

Faceplate Width: 13/16 inch (21mm) .82667

Spindle Hub: 5/16 inch (8mm)

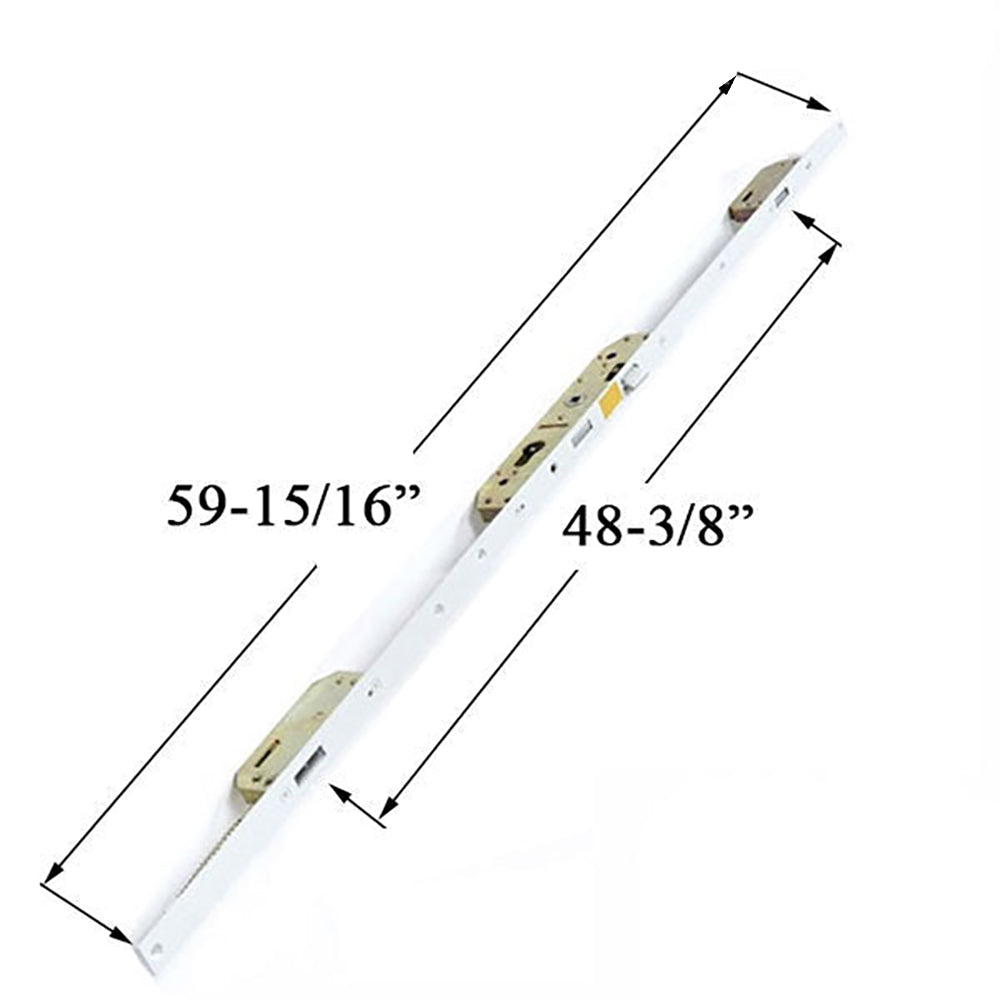

Faceplate Length: 59-15/16 inch

Faceplate Color: Gray ( white or gray)

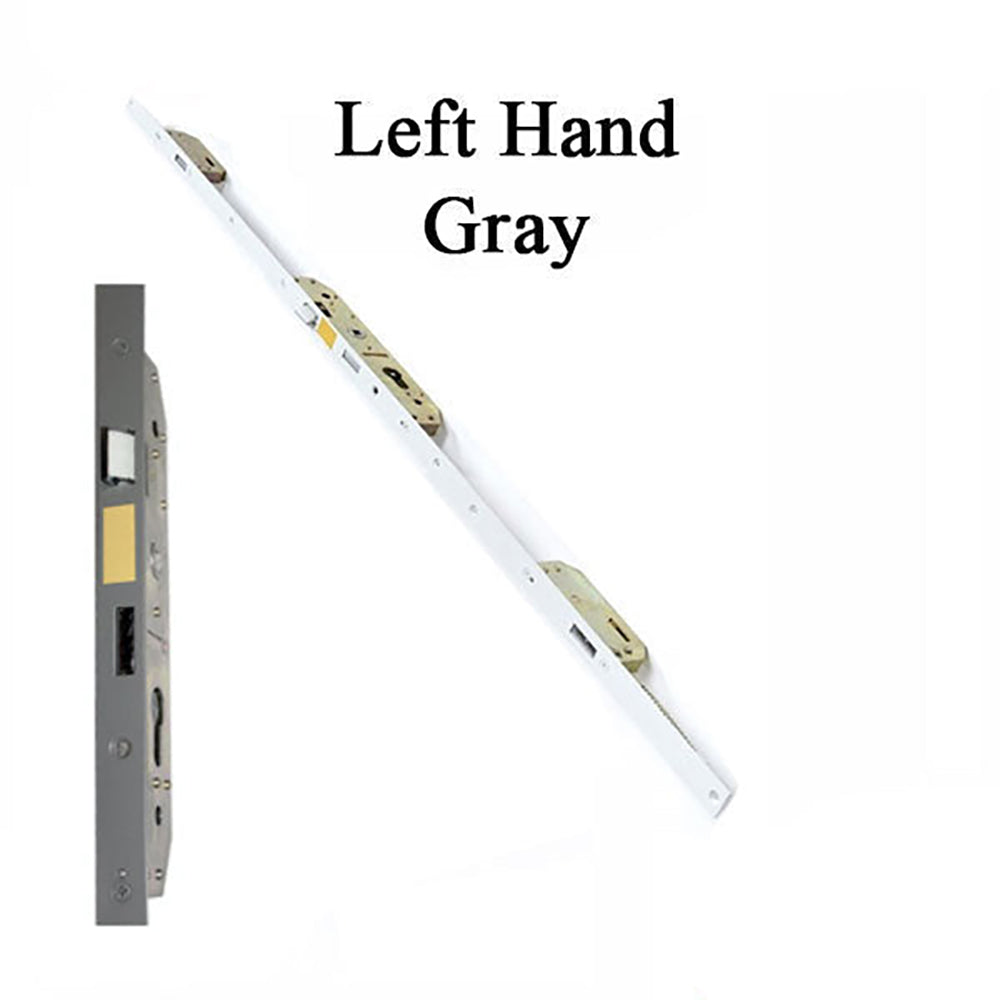

Handed: Yes, Left Hand or Right Hand from Factory

NOTE:  Handing can be changed by loosening the faceplate screws and rotating the spring latch

Handle to Cylinder PZ:  2-1/2 inch (63mm)

Deadbolt Spread: 48-3/8 inches top to bottom deadbolt

Andersen Related Handle Sets:

Traditional Style

42535 - Brass

42536 - Nickel

42537 - Oil Rubbed Bronze

91975 - Matte Black

91974 - Antique Brass

Modern Style

91971 - Dark Nickel

91972 - Matte Stone

91973 - Metallic Stone

Lock Operation:

1. Center Deadbolt only - can be locked with key or thumb turn on cylinder

2. 3-point lock - Lift handle and use key or thumb turn to engage all 3 locking points

3. Unlocking 3-point lock - Lift handle and use key or thumb turn to disengage all 3 locking points
