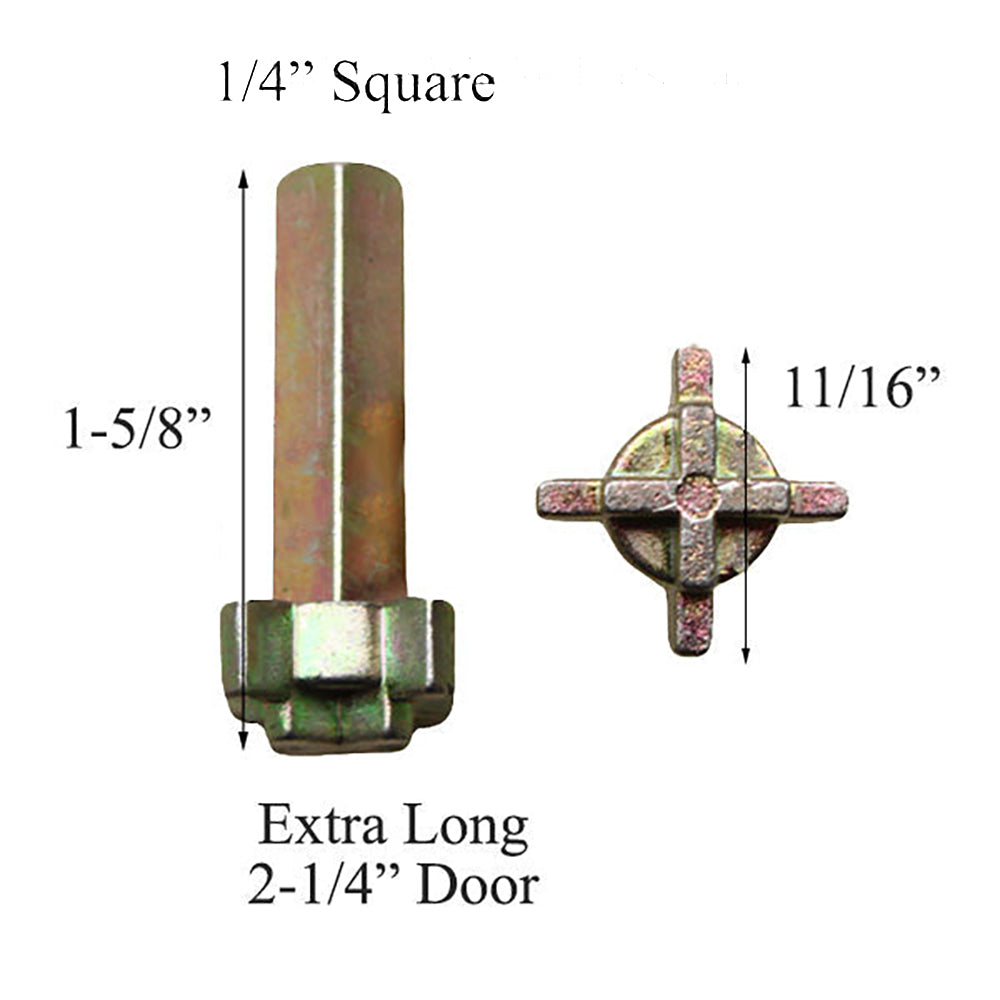

  • Actuator Thumb Turn Tail Piece for andersen frenchwood hinged door on white background with measurements.
1 2

Andersen Frenchwood Hinged Door Lock Actuator

Andersen Frenchwood Hinged Door Lock Actuator

SKU: 9050896



$2.20 USD
$2.20 USD
Sale Sold out
Shipping calculated at checkout.

Andersen KML Hinged Door Lock Actuator for 2-1/4 inch thick door panel

Length: 1-5/8 Inch
Spindle Diameter: 1/4 Inch
Width: 11/16 Inch

This lock actuator is located underneath the inside escutcheon plate. It is held into place with 2 screws and a limiting plate. When the dead bolt knob on the escutcheon plate is turned it rotates the actuator which locks the dead bolt.

The lock actuator is used on Andersen Frenchwood hinged and outswing patio doors. It is held in place with a limiting plate and two screws. This part activates the thumb turn lock. If the thumb turn spins, the component will likely need to be replaced.
