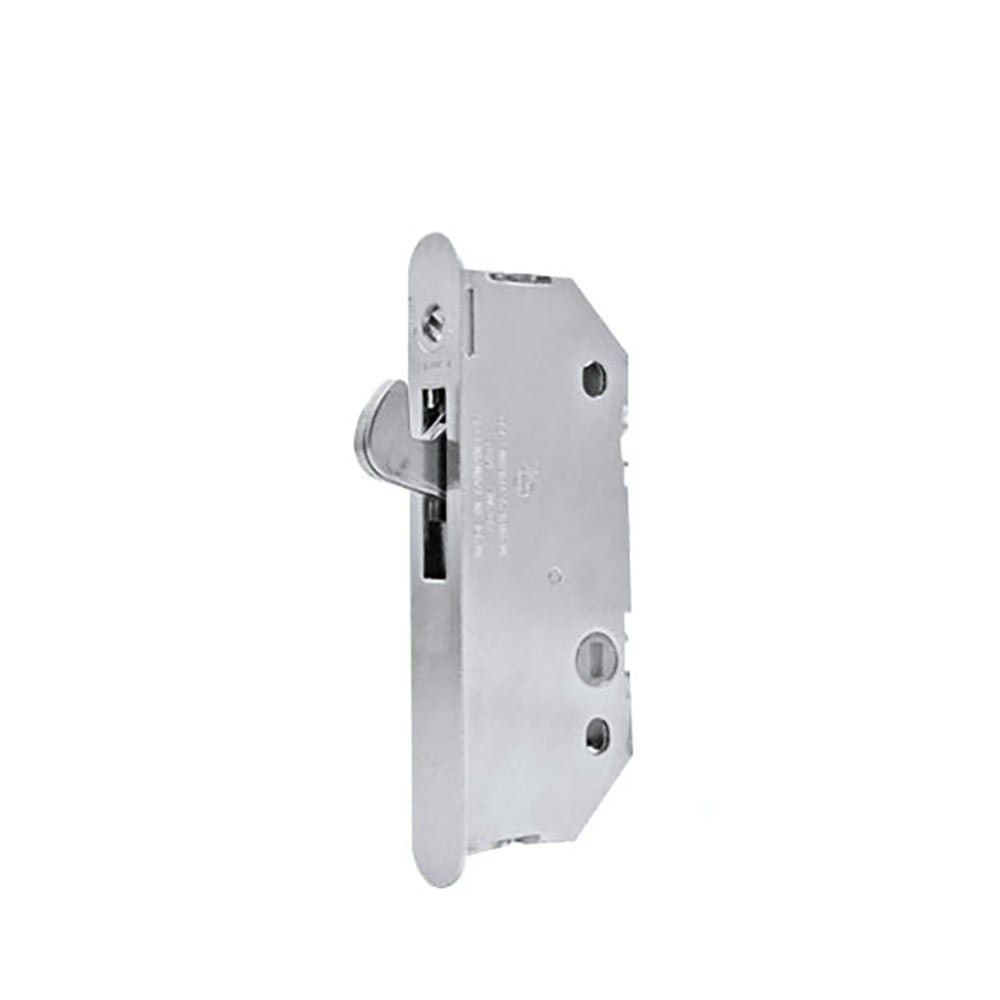

Andersen Pre-Reachout Universal Deadlock for 2 and 3 Panel Gliding Door
Andersen Pre-Reachout Universal Deadlock for 2 and 3 Panel Gliding Door
SKU:
SKU:1997156Regular price
$29.98 USD
Regular price
Sale price
$29.98 USD
Unit price
per
Andersen pre-reach out universal deadlock for 2 and 3-panel sliding doors.
Used by Adams Rite, Andersen, Weather Shield, and others
The Deadlock is the mechanism that secures the operating panel to the frame.
Universal Deadlock was manufactured on Andersen Gliding Patio Door units from 1968 to 1993.
Deadlock has an adjustment screw that will move the latch in and out to allow a snug fit when locking the door.
Works With:
200 Series Perma-Shield Gliding.
400 Series Frenchwood Gliding.
Height: 4-1/2 Inch
Width: 1/2 Inch
Offset: 1-1/2 Inch
Screw Center Length: 2-9/16 Inch
Keyway: Vertical
Priced and sold each.
To check the Lock Adjustment
1. Open the door and operate the lock from the inside with the thumb turn - it should move smoothly
2. Close the door and lock
- Does the thumb latch still work smoothly? If Not, the lock or strike may need adjustment
Pre-Reach Out Locks
The older Andersen locks had the adjustment in the face of the lock. When the screw is turned it would move the latch in or out for better adjustment
If the lock thumb latch is hard to turn - extend the latch, if the door has too much movement - retract
Turn clockwise to retract the latch
Turn counter-clockwise to extend
Reach Out Locks
Same idea as above, except Andersen moved the adjustment to the Strike plate on the door jamb
Some doors may have adjustments on Lock and strike.
