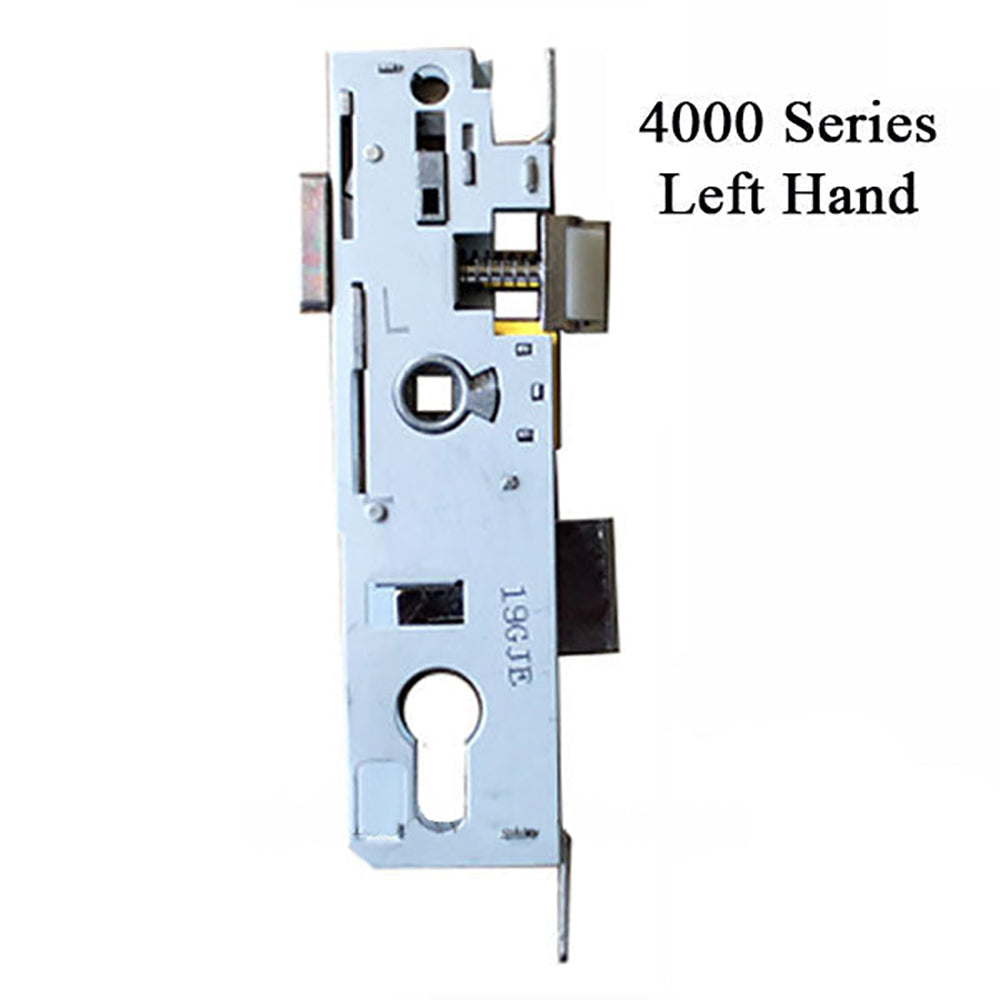

Andersen Storm Door Lock case, Body Only, No Faceplate, Left Hand

Andersen / Emco Replacement Mortise lock used with 4000 Series full view quick change glass and screen inserts.

The 4000 series storm door has a button above the handle. To replace glass the button is pushed up and the lever is lifted to a vertical position. Remove glass or screen panel to change.

Lock Application: 4000 Series Quick Change System, Full View Storm Door

Handed: Yes, handed as shown

Markings on Lock case: Yellow nylon guide below latch,  L or R on metal

Cylinder Type: Euro Profile

Cylinder to Handle PZ: 2-1/2 inches (63mm)

Contents: Lock Case and Screws, No Faceplate

NOTE:  Handing determined from Outside, by location of handle set:  handle set on the right is Right Hand -  handle set on the left is Left Hand
